| Grade | FR-FS11 |

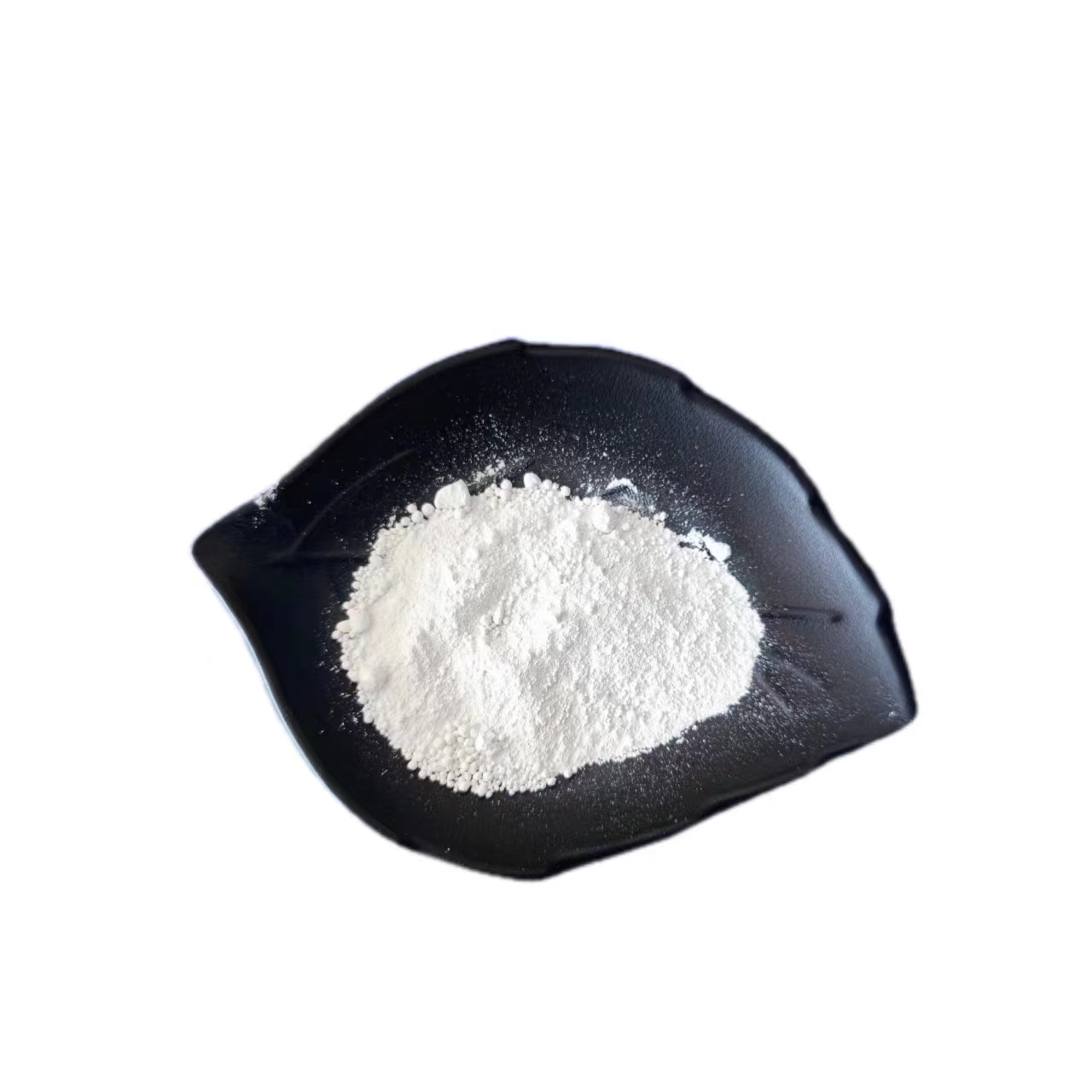

| Appearance | White Powder |
| Whiteness (%) | ≥92.0 |
| Moisture (w/%) | ≤1.0 |
| Particle Size D50 (μm) | ≤5.0 |
Performance Features
1. Excellent heat resistance, low addition, excellent mechanical properties, good color and luster, low combustion smoke density of the product, and high CTI (comparative tracing index).
2. Excellent comprehensive properties of electricity, heat resistance and low precipitation.
It can be used for PVC wire and cable, PVC leather, PVC canvas and other PVC products with antimony trioxide added as flame retardant synergist. It suggests 1.15~1.25phr of FR-FS11can replace 1 phr of antimony trioxide.
|
Materials |
1# |
2# |
3# |
|
SG-3 |
100 |
100 |
100 |
|
DOTP |
50 |
50 |
50 |
|
CaCO3 |
22 |
22 |
22 |
|
Kaolin |
8 |
8 |
8 |
|
CPE |
7 |
7 |
7 |
|
Stabilizer |
5 |
5 |
5 |
|
ATH |
3 |
3 |
3 |
|
Zinc Borate |
6 |
6 |
6 |
|
Sb₂O3 |
4 |
0 |
0 |
|
FR-FS11 |
0 |
4 |
4.8 |
|
Total |
205 |
205 |
205.8 |
|
Test Item |
Unit |
1# |
2# |
3# |
|
LOI |
% |
30.0 |
28.8 |
30.2 |
|
Tensile Strength |
Mpa |
17.43 |
17.4 |
17.71 |
|
Elongation At Break |
% |
337.12 |
337.34 |
335.12 |
|
Congo Red Time |
min |
92.2 |
92.1 |
92.3 |
|
Volume Resistivity |
Ω*m |
1.389 x 10^11 |
1.371 x 10^11 |
1.718 x 10^11 |
Comply with the requirements of RoHS and REACH restriction.
1. Compound paper plastic bag lined with PE film: 25kg/bag.
2. It needs to be sealed and moisture-proof, and recommended to be stored in a dry place.
3. Storage and transportation temperature: <90℃.
4. The minimum shelf life: 24 months.
